Hydrogen Station



EM Korea will achieve zero carbon emissions with clean Hydrogen energy

EMK will try to become a leading green growth company
in clean hydrogen energy concerning the environment.



Considering our environment, we have to change the gasoline cars to the hydrogen fuel cell or the electric cars as soon as possible. In order to supply and expand the market of the hydrogen fuel cell cars, EMK tries to be in a leading position in development and supply of the water electrolysis type commercialized hydrogen station which america, europe, and other developed countries adopt. EMK constructed the system to compress and store the hydrogen after electrolyzing the water on-site and recharge hydrogen gas to the hydrogen fuel cell cars under 35mpa or 70mpa through the dispenser.

pdf파일 다운받기


Technical specifications

Technical specifications
MODEL EHS-100 EHS-200 EHS-300 EHS-500
Capacity(N㎥/h) 100 200 300 500
The number of cars to be recharged per day 40 80 120 240
Charging pressure(Mpa) 35 MPa or 70 MPa
Speed of recharging / car 35 MPa 3~5minute
70 MPa 3~5minute
Main components Gas Compressor Diaphragm / Hydro-Booster
Storage Vessel 40MPa More than
Dispenser 35 MPa / 70 MPa-Single or Dual

Introduction of Hydrogen station by EMK

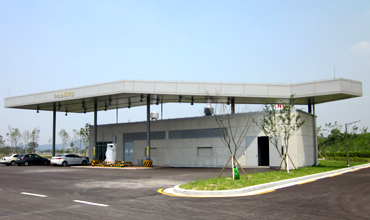

Saemangeum Theme Park(Buan)

Saemangeum Theme Park(Buan)

Location
New renewable energy theme park, Buan-gun, Jeollabuk-do, Korea
Method
Electrolysis
Capacity
12 N㎥/h X 2sets (Supplied by EMK)
Operational vehicle
it will be secured soon
Organizing equipment
Hydrogen generator, Hydrogen purifier, Cooling system, Safety device, etc.

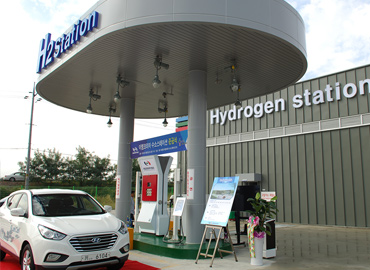

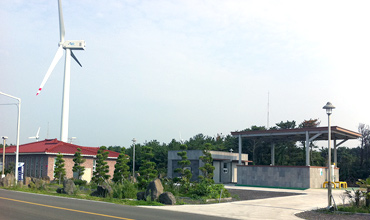

Jeju island

Hyundai Motor company(Jeju island)

Location
Gimnyeong-ri, Gujwa-eup, Jeju-si, Jeju-do, Korea
Method
Electrolysis
Capacity
5 N㎥/h X 1set (Supplied by EMK)
Operational vehicle
Mojave model(2cars)
Organizing equipment
Hydrogen generator, Hydrogen purifier, Cooling system, Safety device, etc.
EM KOREA(Daegu)

EM KOREA(Daegu)

Location
#41 Joya-ro 2-gil, Buk-gu, Daegu, Korea
Method
Electrolysis
Capacity
Max 60N㎥/H
Organizing equipment
- Gas compressor(Diaphragm) : 35 MPa, 50 N㎥/h
- Gas compressor(Hydro-Booster) : 80 MPa, 160 N㎥/h
- Storage vessel : 40 MPa, 1N㎥ X 4
- Dispenser : 35 MPa / 70 MPa
- Chiller : -25℃

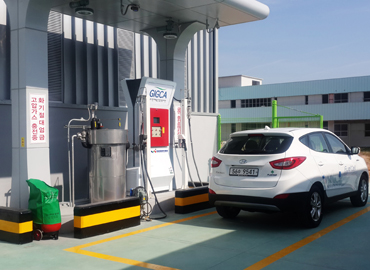

EM KOREA(Gwangju)

Hydrogen Station(Gwangju)

Location
#471-4 Hanam-dong, Gwangsan-gu, Gwangju, KOREA
Method
Truck-In
Capacity
10Cars/Truck
Fueling Time
5Min.±1Min.
Organizing equipment
- Gas compressor 2SETS(Diaphragm) : 200N㎥/H at 18MPa
- Storage vessel : (1,000 Liter X 4, 40MPa)
- Dispenser(Dual Type) : 35MPa/70MPa
- Chiller : -60℃

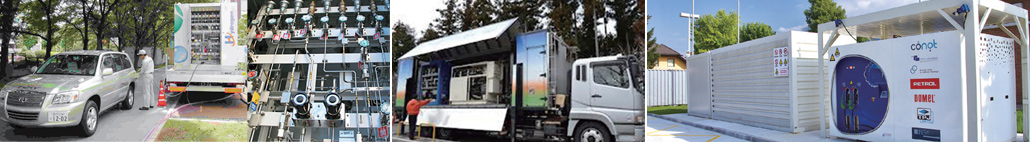

Mobility type Hydrogen Station

Mobility type Hydrogen Station
