BWTS(Ballast Water Treatment System)



EMK produces ballast water treatment system for preserving sea environment

Manufacturing reliable and
stable quality of BWTS



It is an electrolysis type seawater sterilization apparatus which protects the marine ecological system from destruction and disturbance by the movement of ballast water of the ship. As it has excellent sterilization efficiency, it can be used to all kinds of ships and the size of storage can be maximized.

pdf파일 다운받기


Marine contamination and ecosystem disturbing process by the
movement of ballast water

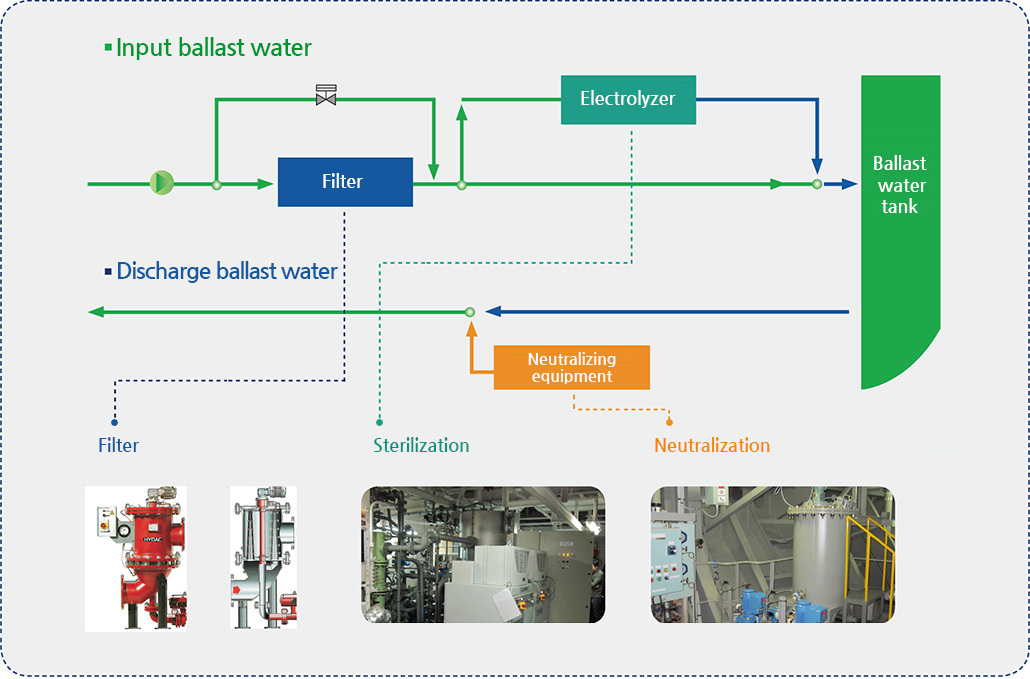

BWTS process

BWTS process

Ballast water treatment system

  • HiB-2000 Electrolysis System

    HiB-2000 Electrolysis System

  • HiB-1000 Electrolysis System

    HiB-1000 Electrolysis System

  • HiB-1000 Controler

    HiB-1000 Controler

  • HiB-6000 Electrolysis System

    HiB-6000 Electrolysis System

HiB-1000 Assembly process

Features of EMK's Ballast water treatment system

Technical specifications
Division Feature
Convenient maintenance and repair    · Modulated system · Easy maintenance and repair by crew/engineer
   · Global support and worldwide customer service network
Automatic operation    · Feedback control system of each unit equipment and HMI (Human machine Interface)
   · Automatic and manual operation · Automatic TRC (Treatment Rated Capacity) control
Application to various shipss    · Applicable to all kinds of ships including tanker, container ship, LNG/LPG carrier and etc.
   · Treatment capacity of ballast water : 75 ~ 8,000㎥/ hr
Economical operation expenses    · Low operation expenses
   · Use high durable electrodes
Convenient installation of system    · It is possible to install the BWT system without changing the design of the ship.
   · It is suitable to be installed in an existing ship due to a modulated design

Standard chart of BWTS based on specifications

Technical specifications
Description Flow
Capacity
Electrolysis System
(Unit Dimensions)
Filter Unit
(Dimensions)
Weight
(Net)
Required
Power
Model ㎥/ hr L x W x H (mm) L x W x H (mm) kg kW
HiB-500 500 2000 x 2200 x 2300 570 x 570 x 2010 1700 25
HiB-700 700 2000 x 2200 x 2300 670 x 670 x 2190 2000 35
HiB-1000 1000 2500 x 2400 x 2400 780 x 780 x 2130 2700 50
HiB-1500 1500 2500 x 2500 x 2400 900 x 900 x 2420 3800 75
HiB-2000 2000 2500 x 2500 x 2400 900 x 900 x 2420 5000 100
HiB-3000 3000 3000 x 2800 x 2600 1120 x 1120 x 2610 6500 150
HiB-4000 4000 3000 x 2800 x 2600 1230 x 1230 x 2660 8200 200
HiB-5000 5000 3500 x 2800 x 2800 1230 x 1230 x 2660 8800 250
HiB-6000 6000 3500 x 2800 x 2800 1410 x 1410 x 3500 9300 300
HiB-8000 8000 4000 x 2800 x 3000 1630 x 1630 x 3650 9700 400
