CNC Lathes



High Technology & High Precision Mechanism, EMK Machine Tool Series

Produce 35models of completed CNC lathes



Mass production of 35models, 3,000 units annually. Secured competitiveness by establishing mass production system with minimum number of people. Exporting around 40% of production and it grows gradually. Based on this result, EM Korea awarded 10 million export prize.

  • •Composed with various line up for many cases of production
  • •Realization correlates with high precision ball screw and servomotor of each axis
  • •Adaptable method for high precision pretension of the double anchor support
  • •Configurable stabilization unit minimizes the thermal deformation


Producing process of completed CNC lathes model

  • •Over 3,000 sets per Annual production, 250 sets per Month in production of 35 models.
  • •Carry out entire production process from Designing to Shipment (Machining, Assembly, Testing, Inspection)

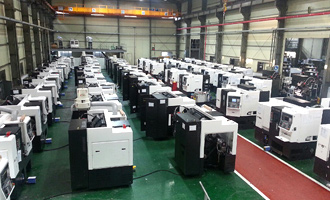

  • manufacturing LINE

    Manufacturing line

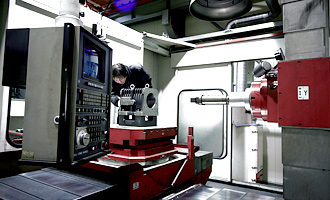

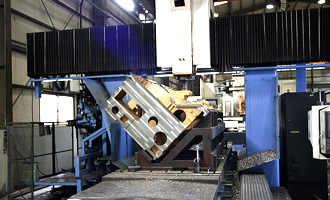

  • fine boring

    Fine boring

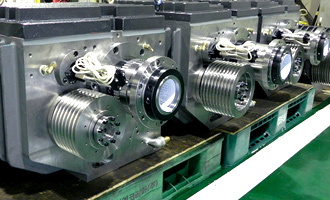

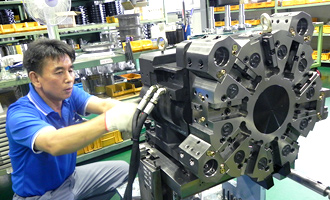

  • Main components assembly line

    Main components assembly line

  • Main components assembly line

    Main components assembly line

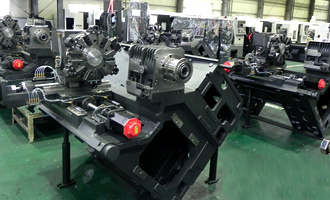

  • Completed assembly line

    Completed assembly line

  • Completed assembly line

    Completed assembly line

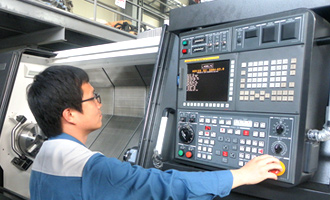

  • Trial operating test

    Trial operating test

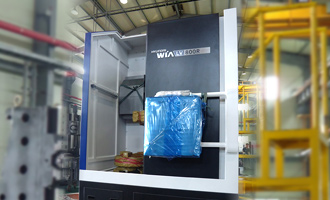

  • Packaging and delivery

    Packaging and delivery

Mass production of 35 models of CNC lathes

6″(8″)

  • E200A
  • E200MA
E200A

8″(10″)

  • E200C
  • E200MC
E200C

10″(12″)

  • L250SY
  • L250Y
  • L280
  • L280L
  • L280LM
  • L300A
  • L300LA
  • L300LMA
  • L300LMSA
  • L300MA
  • L300MSA
L250SY L280LM

12″(15″)

  • L300C
  • L300LC
  • L300LMC
  • L300MC
  • L300MSC
  • L500AW
  • L600AW
L300C L600AW

15″(18″)

  • L400LC
  • L400LMC
  • SKT460
L400LC

18″(24″)

  • LV800L
  • LV800R
  • LV800LM
  • LV800RM
  • LV800RAW
  • LV800LAW
L400LC

32″(40″)

  • LV1100R
  • LV1100RM
LV1100R LV1100RM

40″(50″)

  • LV1400
LV1400

63″

  • LV2000MM

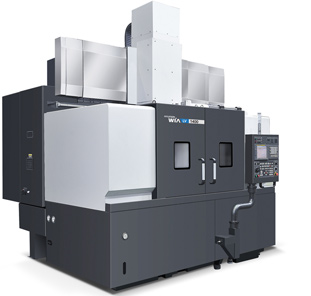

LV2000
