Eco-Friendly Energy Resource Plant



Food waste recycling system

We will protect the environment through development of waste resource system.

EM Korea's patented technology

"vacuum technique applied concentrating and evaporating at low temperatures."



「Recycling Plant System」 is resource circulation facilities for food-waste disposal. The system is armed with EMS's patented technology of "vacuum technique applied concentrating and evaporating at low temperatures." EMS has set up the facilities at more than 250 waste disposal sites across the country. In future, the system will be gradually employed at plants for livestock waste and sewage disposal, as well. EMS aims not only to conserve natural environment through recycling waste but to realize resource recovery. It will lead to the nation's eco-friendly green growth by recycling waste and economic benefits by cutting down social costs.

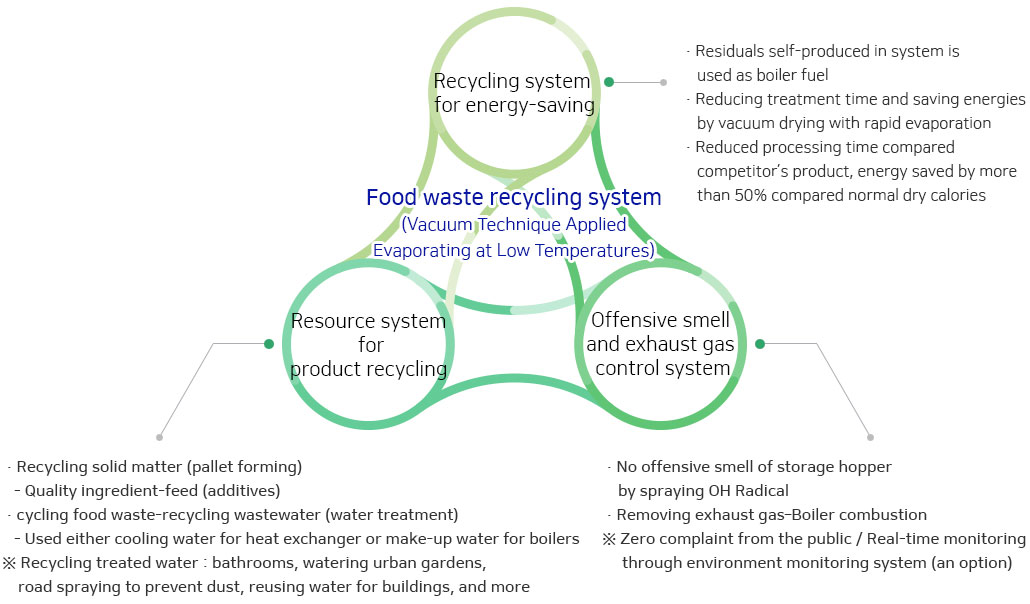

Method advantages

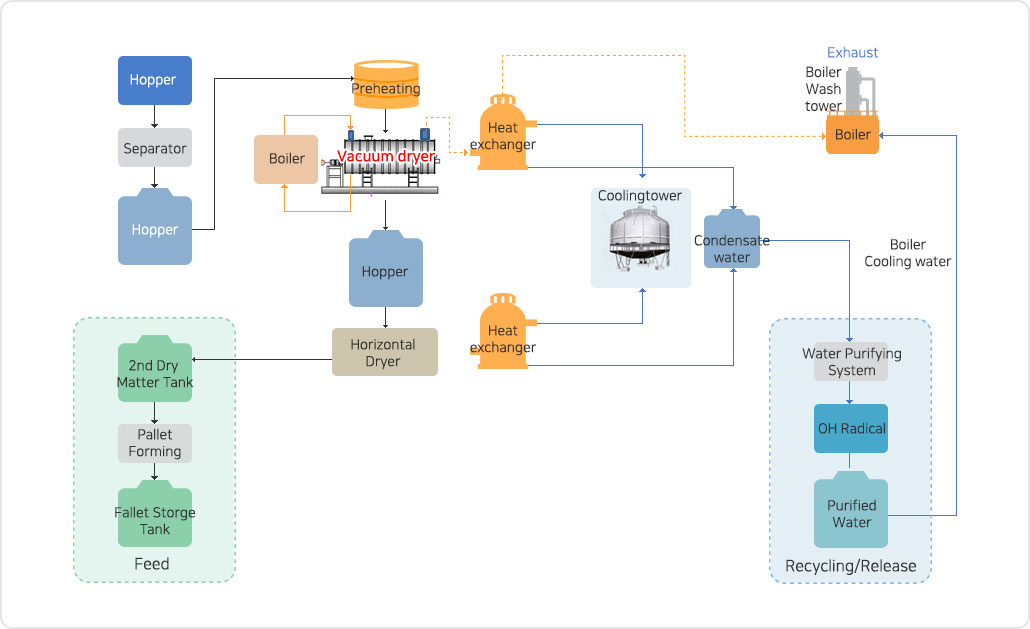

FLOW-CHART

Operation process

  • Boiler operation
    (using pellet, fraction)

  • Preprocessing
    (hopper, separator)

  • Preheating
    (sterilization)

  • Vacuum dryer operation(cooling
    tower, heat exchanger operation)

  • Water purifying system
    → discharge

  • Magnetic separator
    → pellet formation

  • Horizontal multi-stage dryer
    (water content: 20%)

  • Dryer matter storage
    (water content: 50%)

※ Batch vacuum dryer and Continuous horizontal multi-stage dryer operation

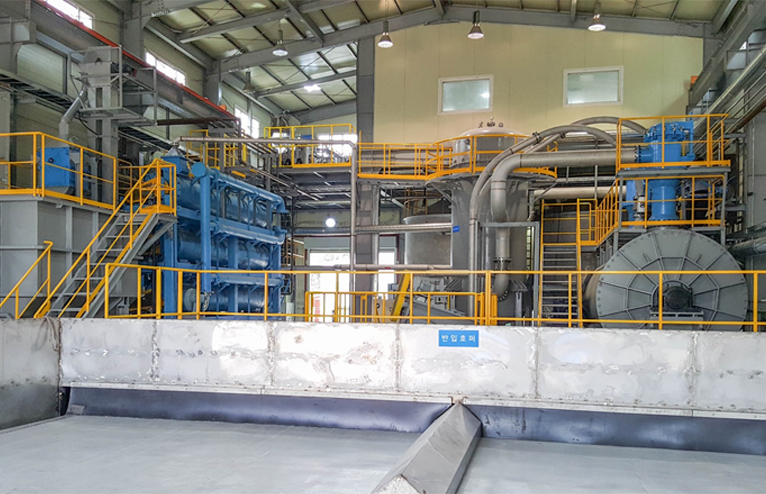

Recycling plant system
Main Facility
  • Vacuum dryer

  • Horizontal multi-stage dryer

  • Water purifying system
