Eco Crobe

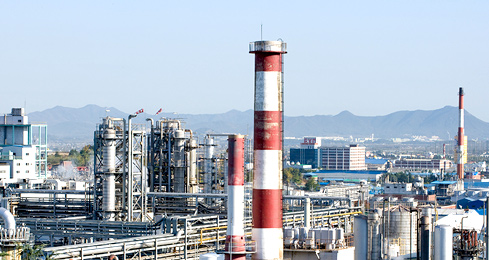

EMK will protect environment by recycling industrial organic waste

Recycling of industrial organic waste



Eco Crobe was designed using eco friendly scientific technology and bio microbiological technology to decompose organic waste. Recycling the waste for solid fuel and feed depend on the types of sludge.

pdf


Meaning of Eco-Crobe

  • Eco + Microbe
  • Eco-Crobe


    The word of Eco-Crobe is a compound word of Eco-friendliness and Microbe, meaning that this is the fermentation device for treating the waste in an eco-friendly way.

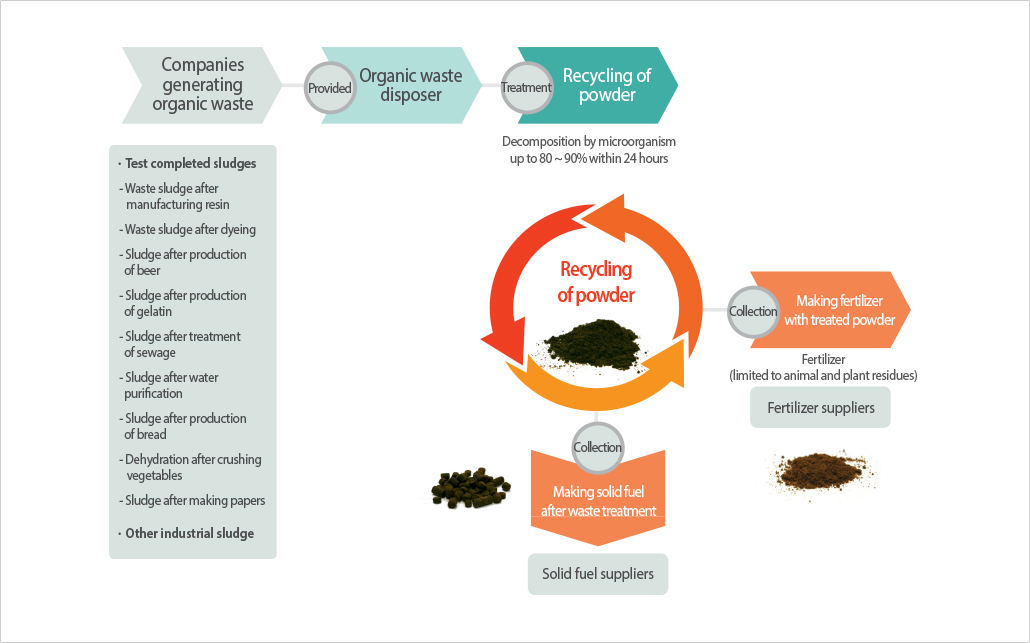

Resource circulation system of organic waste

Resource circulation system of organic waste

Specifications

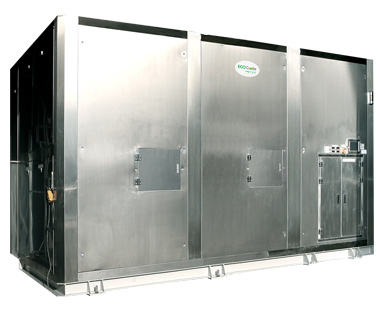

EMK-2TM(2Ton/day)

pdf
  • EMK-2TM
  • Technical specifications
    MODEL EMK-2TM
    Maximum treatment capacity 2Ton/day
    Rated voltage 3ph380/415v, 50/60 Hz
    Treatment method Fermentation and extinction method
    using the microorganism
    Treatment time Within 24 hours
    Deodorization system Transition metal catalysis methods
    Power consumption 22kWh
    Weight 12Ton
    Dimensions (W x D x H) 5,560 x 2,310x 2,480

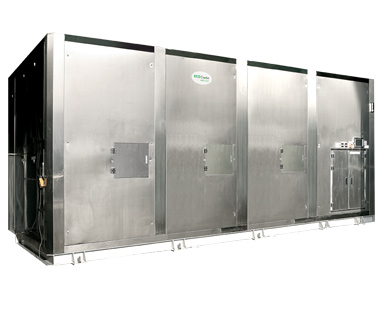

EMK-5TM(5Ton/day)

pdf
  • EMK-5TM
  • Technical specifications
    MODEL EMK-2TM
    Maximum treatment capacity 5Ton/day
    Rated voltage 3ph380/415V, 50/60Hz
    Treatment method Fermentation and extinction method
    using the microorganism
    Treatment time Within 24 hours
    Deodorization system Transition metal catalysis methods
    Power consumption 50kWh
    Weight 16Ton
    Dimensions (W x D x H) 7,700 x 2,730 x 2,985
Food waste treatment

Superb performance recognized by the world

Eco-friendly food waste disposer, One touch type automatic system machine exported to the world
It is a patent registered with excellent durability and safety
  • 에코크로브 특징
  • 01. Strong durability
    It has excellent resistance to corrosion as it is made of stainless steel
    02. One-touch automatic system
    It is one touch automated system that is click and simple operation by
    using PLC and touch screen
    03. Convenience of use
    It is possible to treat bulky food waste without cutting
    (water melons, radishes, pine apples, fishes, etc)
    04. Eco-friendly system
    It is a patent registered product which is possible to recycle the treated
    powder (such as compost)
    05. Energy efficiency
    It is possible to minimize energy loss and maximize heat energy
Excellent decomposition and extinction
  • ㆍ90% (±2) of food waste can be
       decomposed and extincted within 24
       hours
Complete removal of offensive odor
  • ㆍAs it is designed to treat the odor twice
  • ㆍIt equipped 8-stage of deodorizing
        filters in the final process.
Recycling of the powder
  • ㆍIt is possible to use the powder
       (10±2%) after treatment.
  •   - It is not necessary to discharge
         the powder every day



※ Eco Crobe can be semi-permanently used with one administration of microorganism and it is not necessary to change the deodorant

Specifications

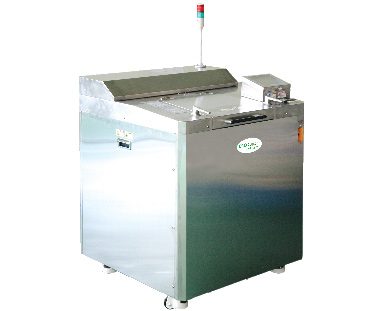

EMK-20M(20kg/day)

pdf
  • EMK-2TM
  • Technical specifications
    MODEL EMK-20M
    Maximum treatment capacity 20kg/day
    Rated voltage 3ph 220V, 50/60Hz
    Treatment method Fermentation and extinction method
    using the microorganism
    Treatment time Within 24 hours
    Deodorization system Transition metal catalysis methods
    Power consumption 0.94kWh
    Weight 295kg
    Dimensions (W x D x H) 915 x 870 x 1,025

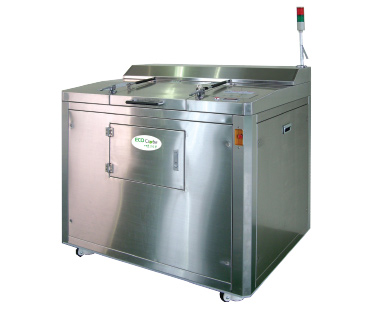

EMK-50M(50kg/day)

pdf
  • EMK-50M
  • Technical specifications
    MODEL EMK-50M
    Maximum treatment capacity 50kg/day
    Rated voltage 3ph 380/415V, 50/60Hz
    Treatment method Fermentation and extinction method
    using the microorganism
    Treatment time Within 24 hours
    Deodorization system Transition metal catalysis methods
    Power consumption 1.50kWh
    Weight 477kg
    Dimensions (W x D x H) 1,220 x 990 x 1,100

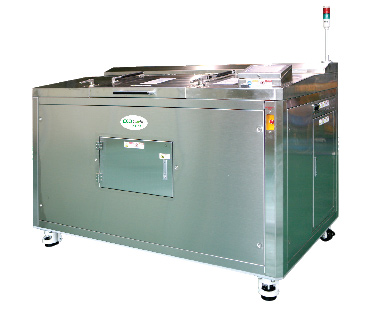

EMK-100M(95kg/day)

pdf
  • EMK-100M
  • Technical specifications
    MODEL EMK-100M
    Maximum treatment capacity 95kg/day
    Rated voltage 3ph 380/415V, 50/60Hz
    Treatment method Fermentation and extinction method
    using the microorganism
    Treatment time Within 24 hours
    Deodorization system Transition metal catalysis methods
    Power consumption 2.50kWh
    Weight 825kg
    Dimensions (W x D x H) 1,750 x 1,120 x 1,235

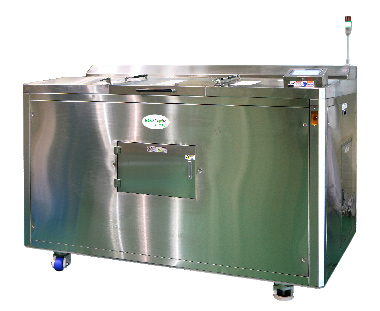

EMK-200M(195kg/day)

pdf
  • EMK-200M
  • Technical specifications
    MODEL EMK-200M
    Maximum treatment capacity 200kg/day
    Rated voltage 3ph 380/415V, 50/60Hz
    Treatment method Fermentation and extinction method
    using the microorganism
    Treatment time Within 24 hours
    Deodorization system Transition metal catalysis methods
    Power consumption 5.0kWh
    Weight 1,400kg
    Dimensions (W x D x H) 2,120 x 1,380 x 1,485

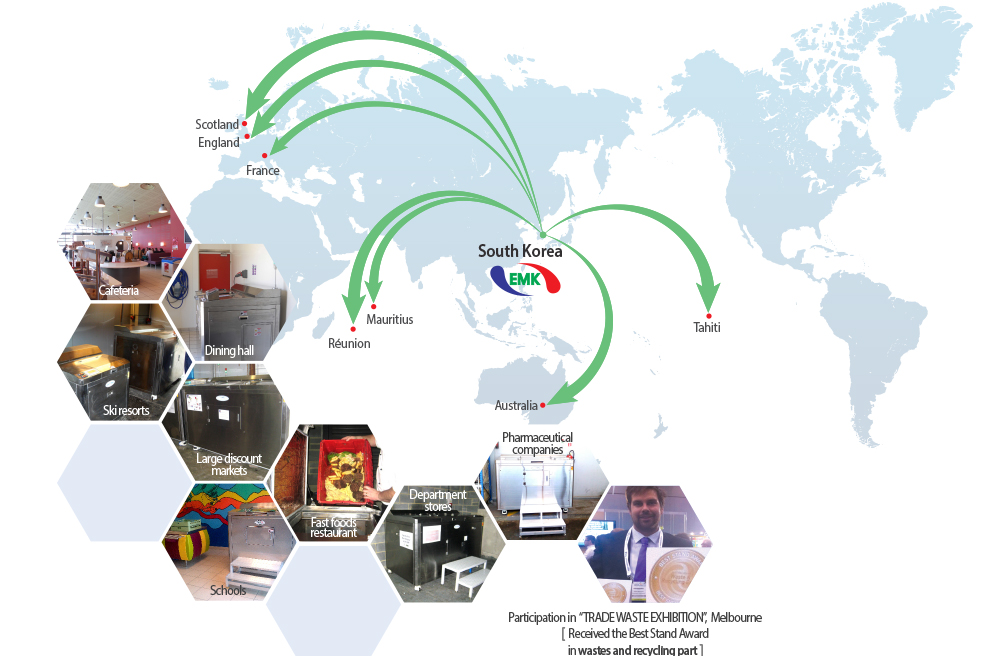

Overseas marketing status France, England, Scotland and Australia

Export status of foods waste decomposer using fermentation and extinction method to Overseas markets

It is now installed and used in thirty places in European countries such as France and England (including large discount markets, refectories, restaurants, department stores, schools, fast foods stores and ski resorts, etc)


Overseas marketing status
